Small Combinational Circuits



10 small combinational circuits designed for the practical work on diagnosis are shown in the following table. Each circuit has 6 inputs and 3 outputs. The figures for the circuits are given in the second column and source design files in EDIF format can be obtained from the last column. The teacher will give you the number of a circuit to practice with.



N
Circuit Name
Figures
Source File
1

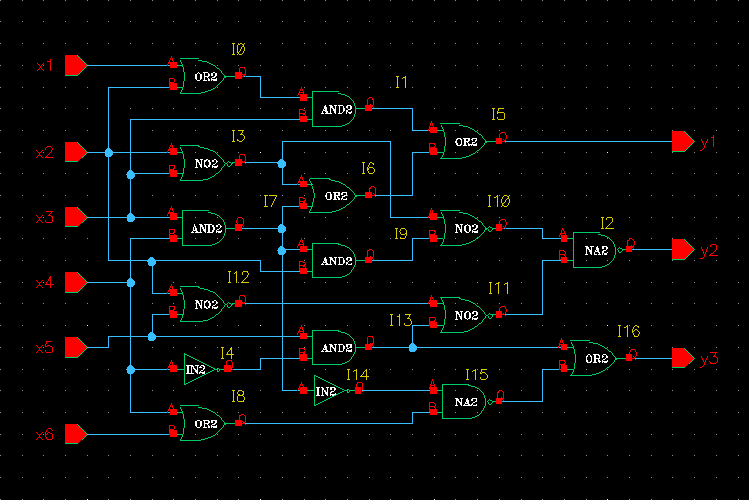

d1
d1.edi
2

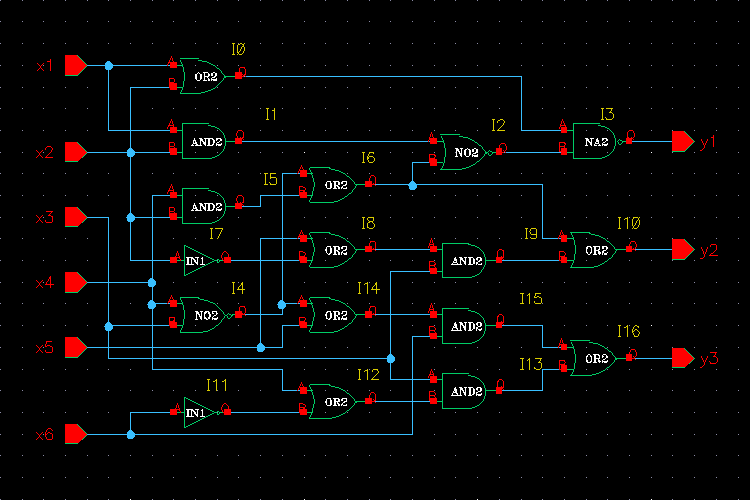

d2
d2.edi
3

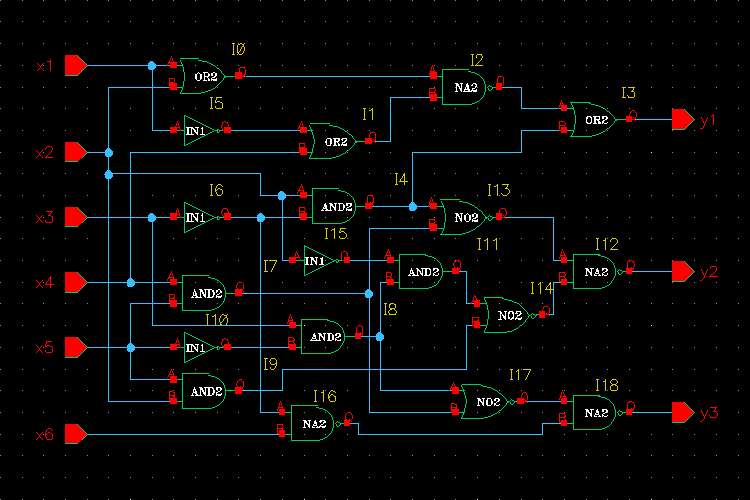

d3
d3.edi
4

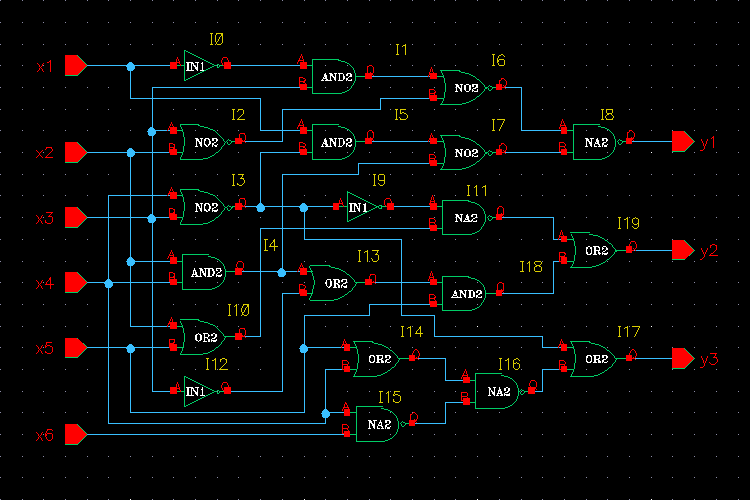

d4
d4.edi
5

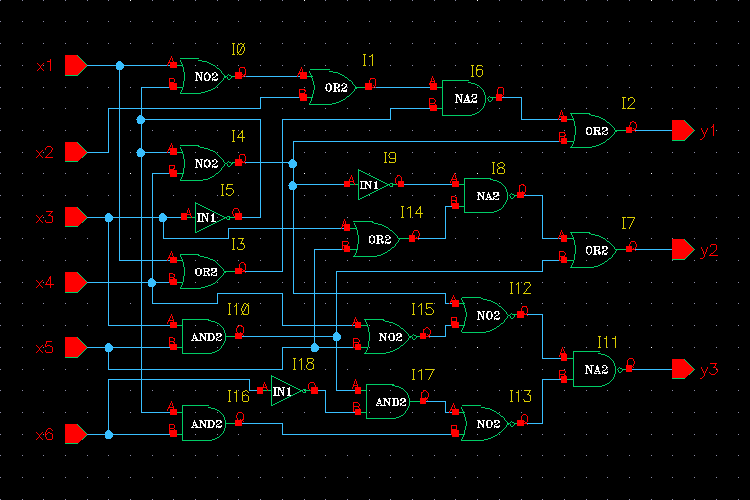

d5
d5.edi
6

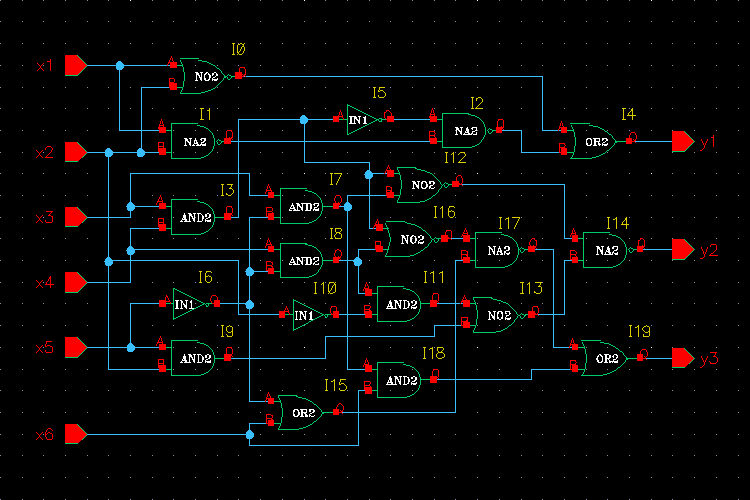

d6
7

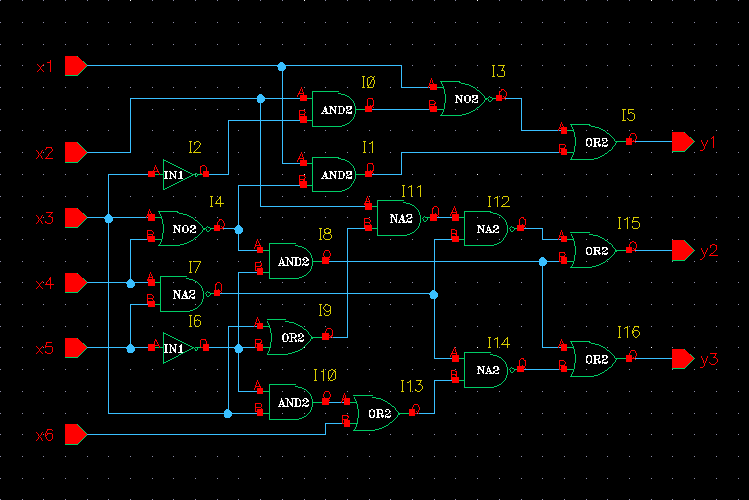

d7
8

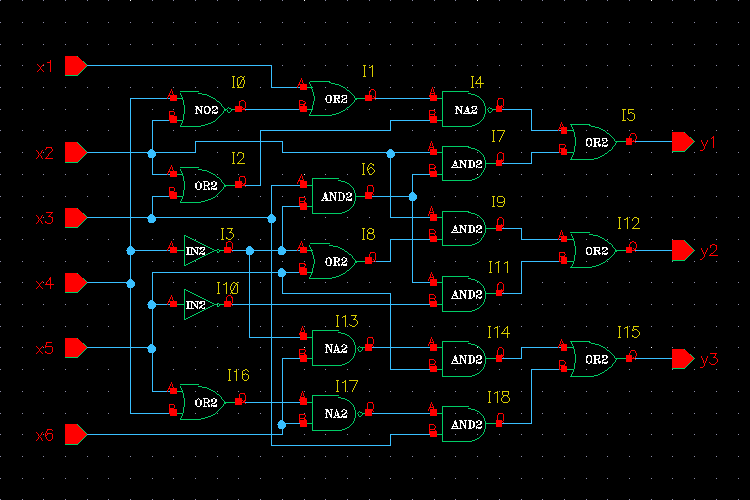

d8
9

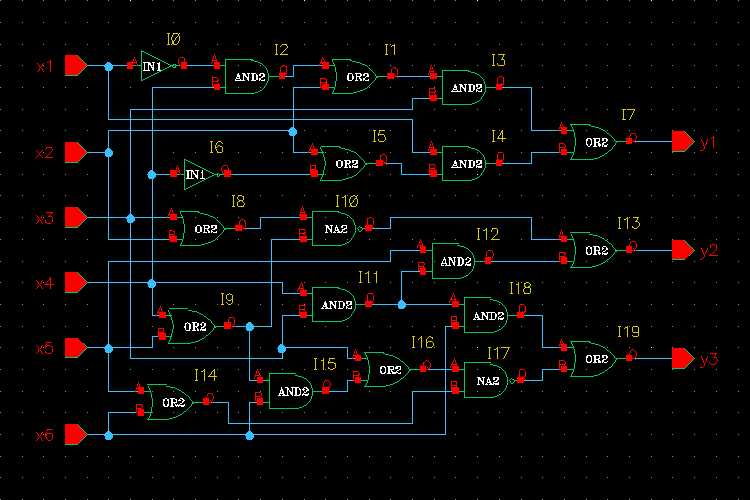

d9
10

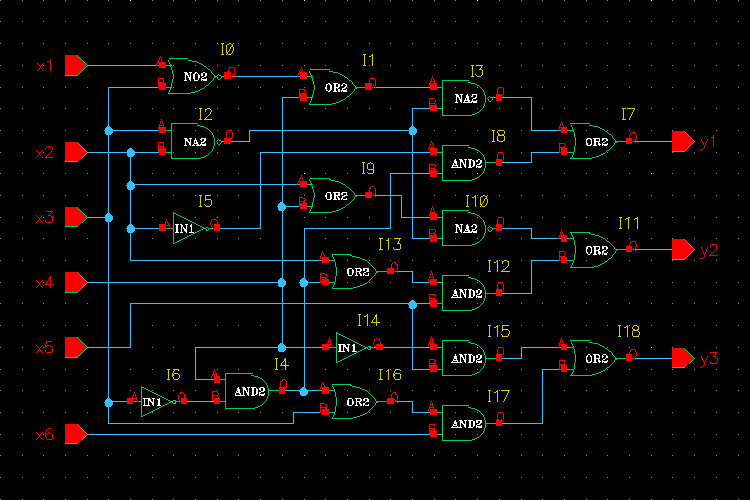

d10
